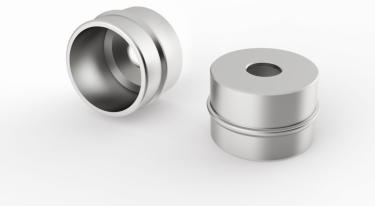

The revolutionary concealed quick assembly and release fastening system FAST-CON® is the new and revolutionary 2 part concealed quick assembly snap on / pull off fastening system. Practically indestructible, manufactured from 301/303 or 316 stainless steel, resistant to fire and corrosion. The small size and the concealed fixing system make it perfect for all kinds of applications. FAST-CON® is a patented metal fastening system that allows you to quickly connect panels and coverings by simply pressing and snapping into place; removal is by pulling the panel away. The FAST-CON® clip system allows for a concealed mechanical fixing, making the union of 2 parts quick and reliable. FAST-CON® is made of 2 parts, male and female, in stainless steel, with a special profile suitable for quick connection and release. FAST-CON® is installed by screwing, riveting or gluing. The clips have a release force (7kg and 10kg) that varies depending on the series used. A FAST-CON® stainless steel centre marking device is available to allow perfect hole alignment every time. Application examples Panelling, false ceilings, boiserie, removable coverings, removable seats, furniture doors, advertising desktop customizations, etc. Benefits Quick and easy installation Flexibility of use Minimum overall dimensions Can be used in every industry Flame resistant Corrosion resistant Long-lasting life compared to the most common plastic systems

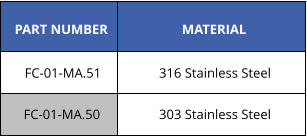

PART NUMBER MATERIAL FC-01-MA.51 FC-01-MA.50 316 Stainless Steel 303 Stainless Steel
The values ​​and dimensions are indicative and not binding - dimensions expressed in mm.
Standard Item
Special Order
10  1.5   25   12.5  Application example: recessed FAST-CONŽ Application example: surface mounted FAST-CONŽ tinyurl.com/NP-FAST-CON FAST-CON snap on fastener animation. FAST-CON FC-00-FE female recovery pliers. FAST-CON FC-00-LE.12 panel release lever. FAST-CON FC-01-CE.50 Stainless Steel centre marking device.
Stainless steel centre marking device part number FC-01-CE.50
Female recovery pliers part number FC-00-FE
Panel release lever Part number FC-00-LE.12
FAST-CON is a registered trademark of SPECIALINSERT Srl
Accessories
FAST-CON®   MALE
17.5   5.2   11.4   1.0   14.4  MALE PART
