Installation Method & Performance
Performance
Do not remove any extra material or
chamfer the hole as this could result in
improper installation or reduced
performance.
Ensure that attention is paid to the
minimum hole centreline to edge
dimension for each fastener. Installing
too close to an edge or bend could result
in improper installation or reduced
performance. Minimum centreline to
edge dimensions shown for each
fastener apply to one edge only. If this
distance is applied on multiple sides
there will be significant panel distortion
unless the panel edges are supported
during installation.
First prepare the specified hole in the panel.
Place the fastener in the anvil with the shank facing up like in
the diagram above. Locate the panel mounting hole over the
shank of the fastener.
Ensuring the panel is held level, apply a parallel squeezing force
until the shoulder of the fastener is seated against the panel.
Do not over squeeze the fastener into the panel as this will
result in panel and possibly thread deformation.
When installing broaching fasteners, please pay attention to
the minimum hole centreline to edge and parent material
hardness limitations.
B
-0.03
1.70
1.20
2.70
A
±0.05
8.97
5.79
9.76
Thread
codes
M3.5|M4
M2|M2.5|M3
M5
Anvil Dimensions
Thread code
M5
Installation
(kN)
2.1
2.2
2.9
Push-out
(N)
285
420
435
Torque-out
(Nm)
1.6
3.5
4.5
Test Sheet Material
1.6mm FR4 Epoxy Laminate
1.6mm FR4 Epoxy Laminate
1.6mm FR4 Epoxy Laminate
M2.5|M3
M3.5|M4
All performance figures are averages obtained over a range of installations and should be used for guidance only. Panel material, hole
preparation, installation tooling and method can affect part performance. We always recommend that you carry out your own tests in the
actual application. Please call our sales team and we will be happy to provide you with samples as well as offering technical assistance.
Material & Finish
Electro Tin Plated Steel (ET)
Stainless Steel (A2)
Maximum recommended
panel hardness: 60HRB
Part Number Examples
Part number is made up as follows:
(Type)-(Thread code)-(Material/Finish code)
For example:
CBN-M3-ET (Broaching Nut-M3-electro tin plated steel)
CBN-M4-A2 (Broaching Nut-M4-stainless steel)
Downloadable Data Sheet
Back

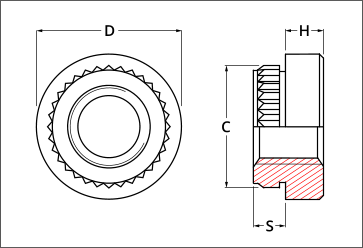

Dimensional
Thread size
Min. panel
thickness
M2 x 0.4
1.53
M2.5 x 0.45
1.53
M3 x 0.5
1.53
M3.5 x 0.6
1.53
M4 x 0.7
1.53
M5 x 0.8
1.53
C
±0.08
4.19
4.68
4.68
5.87
6.86
7.47
Min. CL to
edge of panel
4.20
4.40
4.40
5.50
6.40
7.10
Hole size
+0.08 -0.0
3.73
4.22
4.22
5.41
6.40
6.90
S
Max.
1.53
1.53
1.53
1.53
1.53
1.53
D
±0.13
5.56
5.56
5.56
7.14
8.74
9.53
H
±0.13
1.50
1.50
1.50
2.00
2.00
3.00
Info

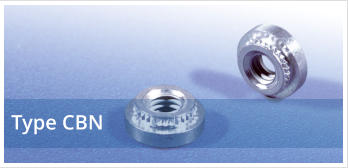

Broaching nuts provide a permanently attached strong thread in non-ductile materials such as printed circuit board,
polycarbonate, acrylic, glass epoxy and resin laminate components as well as ductile panels with a maximum
hardness of 60HRB.
Featuring an axially knurled shank, the serrations are designed to cut into the panel material as it is installed,
resulting in an interference fit that offers good torque-to-turn resistance and push-out performance. Installation is
simple, prepare the specified hole and using a flat punch and appropriate anvil, apply a parallel squeezing force to
press the part into the hole. When installing in printed circuit board, broaching nuts are suitable for use in non-
plated holes only.
Available from stock in metric thread sizes in electro tin plated steel and A2 stainless steel, broaching nuts are
suitable for installation in panels with a maximum hardness of 60HRB.
