BLIND RIVETS

Standard Rivets Dome Head Standard Rivets Countersunk Head Standard Rivets Large Head Multigrip Rivets Dome Head Multigrip Rivets Countersunk Head Multigrip Rivets Large Head Peel Rivets Domed Head Peel Rivets Large Head Sealed Rivets Dome Head Sealed Rivets Countersunk Head Sealed Rivets Large Head Grooved Rivets Dome Head Installation Tools, Spares and Servicing

Material & Finish

Aluminium Body (Al Mg 3.5) / Steel+Zinc Mandrel (AL/ST) Steel+Zinc Body / Steel+Zinc Mandrel (ST/ST) Stainless Body (304) / Stainless (304) Mandrel (A2/A2) *Shear & Tensile performance is based on Aluminium/Steel. For performance figures for other materials please contact us.

Part Number Examples

Part number is made up as follows: (Type)-(Size Code)-(Material & Finish Code)-(Optional Colour) For example: RSTNDCSK-3210-AL/ST (Standard Countersunk Head Rivet-3.2mm body to suit 5-7mm grip-aluminium body/zinc plated steel mandrel) RSTNDCSK-4018-ST/ST (Standard Countersunk Head Rivet-4.0mm body to suit 12.5-14.5mm grip-zinc plated steel body/zinc plated steel mandrel)

Downloadable Data Sheet Back

Dimensional

Shear (N)*

350

Tensile (N)*

550

Grip Range

2.0 - 4.0 4.0 - 6.0 6.0 - 8.0

L Nom.

6 8 10

550

850

2.0 - 3.5 3.5 - 5.0 5.0 - 7.0 7.0 - 9.0 9.0 - 11.0 11.0 - 13.0

6 8 10 12 14 16

750

1100

2.0 - 3.5 3.5 - 5.0 5.0 - 7.0 7.0 - 9.0 9.0 - 12.0 12.0 - 15.0

6 8 10 12 15 18

1250

1800

1.5 - 3.0 3.0 - 5.0 5.0 - 6.5 6.5 - 8.5 8.5 - 10.5 10.5 - 12.5 12.5 - 14.5 14.5 - 16.5

6 8 10 12 14 16 18 20

1850

2600

2.0 - 3.0 3.0 - 4.5 4.5 - 6.0 6.0 - 8.0 8.0 - 10.0 10.0 - 12.0 12.0 - 14.0 14.0 - 17.0 17.0 - 20.0 20.0 - 23.0 23.0 - 25.0 25.0 - 30.0

6 8 10 12 14 16 18 21 24 27 30 35

2150

3100

2.0 - 3.0 3.0 - 4.5 4.5 - 6.0 6.0 - 8.0 8.0 - 10.0 10.0 - 12.0 12.0 - 14.0 14.0 - 16.0 16.0 - 21.0 21.0 - 25.0

6 8 10 12 14 16 18 20 25 30

2.4

3.0

3.2

4.0

4.8

5.0

0.80

1.10

1.40

1.80

Hole Size

2.50

3.10

3.30

4.10

4.90

5.10

5.00

6.00

6.40

7.80

9.50

1.45

1.80

2.20

2.65

Size Code

2406 2408 2410

3006 3008 3010 3012 3014 3016

3206 3208 3210 3212 3215 3218

4006 4008 4010 4012 4014 4016 4018 4020

4806 4808 4810 4812 4814 4816 4818 4821 4824 4827 4830 4835

5006 5008 5010 5012 5014 5016 5018 5020 5025 5030

All dimensions are in mm

Info

Blind Rivets (often referred to as breakstem rivets) allow two or more similar or different materials to be joined together from one side of the application. Available in a combination of diameters, grip-ranges and materials, standard countersunk head rivets are a highly versatile and cost effective, industry proven joining method. This type of head allows the riveting of a larger thicknesses and is designed to appear as a flat surface, flush with application. Installation is simple, with tooling ranging from cheap pistol-grip style guns to air-powered placement equipment suitable for production line work. Applications include, automotive, aerospace, furniture, restoration, sheet metal fabrication etc.

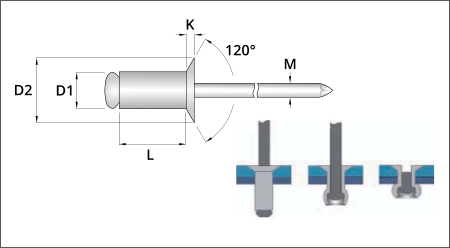

TYPE RSTNDCSK

STANDARD RIVETS COUNTERSUNK HEAD
