Standard Rivets Dome Head
Standard Rivets Countersunk
Head
Standard Rivets Large Head
Multigrip Rivets Dome Head
Multigrip Rivets Countersunk
Head
Multigrip Rivets Large Head
Peel Rivets Domed Head
Peel Rivets Large Head
Sealed Rivets Dome Head
Sealed Rivets Countersunk
Head
Sealed Rivets Large Head
Grooved Rivets Dome Head
Installation Tools, Spares and
Servicing
Material & Finish
Aluminium Body (Al Mg 3.5) / Steel+Zinc Mandrel
(AL/ST)
Part Number Examples
Part number is made up as follows:
(Type)-(Size Code)-(Material & Finish Code)-(Optional
Colour)
For example:
RGRV-3210-AL/ST (Grooved Dome Head Rivet-3.2mm
body to suit 6mm grip-aluminium body/zinc plated
steel mandrel)
RGRV-4818-AL/ST (Grooved Dome Head Rivet-4.8mm
body to suit 13mm grip-aluminium body/zinc plated
steel mandrel)
Downloadable Data Sheet
Back

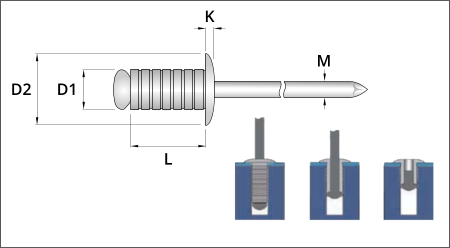

All dimensions are in mm
Dimensional
Shear
(N)
Tensile
(N)
Grip Range
L
Nom.
700
1100
6.0
10
900
1400
4.0
6.0
8.0
8
12
16
1600
2600
4.0
6.0
8.0
10.0
13.0
15.0
20.0
8
10
12
14
18
21
24
D1
3.2
4.0
4.8
K
0.80
1.00
1.10
Hole
Size
3.50
4.30
5.10
D2
6.50
8.00
9.50
M
1.80
2.20
2.73
Size
Code
3210
4008
4012
4016
4808
4810
4812
4814
4818
4821
4824
Info
Blind Rivets (often referred to as breakstem rivets) allow two or more similar or different materials to be joined
together from one side of the application.
Available in a combination of diameters, grip-ranges and materials, grooved dome head rivets are a highly versatile
and cost effective, industry proven joining method. This is the most versatile type of head, providing enough
bearing surface to retain all kinds of materials. This type of rivet does not require a through hole. An excellent
method of joining metal to smooth and fibrous surfaces. Provides a high resistance joint. Ideal for fastening metal
surfaces to wood, brick or cement.
Installation is simple, with tooling ranging from cheap pistol-grip style guns to air-powered placement equipment
suitable for production line work.
Applications include, automotive, aerospace, furniture, restoration, sheet metal fabrication etc.
TYPE RGRV
GROOVED RIVETS
DOME HEAD
