Pias Nuts Type KP
Pias Nuts Type HN
Pias Nuts Type PNC
Rivtex Nuts Type RXM
Rivtex Studs Type RXS
Strux Studs Type SX

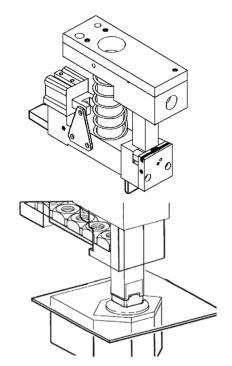

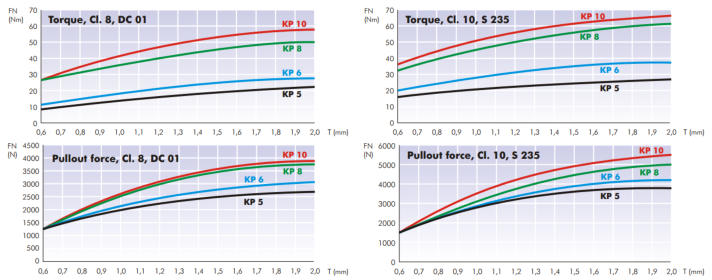

Installation Method & Performance
1
2
3
4
Material & Finish
Steel - Stength Class 8 (8)
Steel - Stength Class 10 (10)
Unplated Steel (X)
Electro Zinc/Clear Plated Steel (ZI)
Electro Zinc/Nickel Plated Steel (ZN)
Electro Zinc/Heavy Plated Steel (ZI96)
Thread tolerance on unplated parts 6G
Thread tolerance on plated parts 6H
Part Number Examples
Part number is made up as follows:
(Part code)-(Strength Class)-(Material/Finish code)
For example:
KP-6S-8-ZI (KP Nut-M6-suitable for 0.6 to 1.3mm panel
thickness-strength class 8-electro zinc/clear plated steel)
KP-8H-10-ZN (KP Nut-M8-suitable for 1.2 to 2.0mm panel
thickness-strength class 10-electro zinc/nickel plated steel)
Downloadable Data Sheet
Back
Dimensional
Thread size
Part
code
KP-5S
M5 x 0.8
KP-5H
M6 x 1.0
KP-6S
KP-6H
Panel
range
0.6 - 1.5
1.2 - 2.0
0.6 - 1.3
1.2 - 2.0
D
Min.
14.40
15.80
15.80
G
±0.18
5.50
6.00
5.50
6.00
H
±0.18
5.00
4.80
5.00
4.80
KP-6T
B
±0.08
11.40
12.72
12.72
12.72
K
7.12 ±0.08
8.42 ±0.08
8.42 ±0.08
8.42 ±0.08
8.42 ±0.08
0.8 - 1.5
15.80
12.72
15.80
5.70
5.00
M8 x 1.25
KP-8S
KP-8H
0.6 - 1.3
1.2 - 2.0
19.50
19.50
7.00
7.70
6.50
6.50
KP-8T
15.52
15.52
15.52
10.42 ±0.08
10.42 ±0.08
10.42 ±0.08
0.9 - 1.75
19.50
7.30
6.50
M10 x 1.5
KP-10S
0.8 - 1.5
20.80
8.20
7.50
KP-10H
16.80
18.80
11.92 ±0.08
13.30 ±0.10
1.5 - 2.0
23.60
10.00
8.80
Info
PIAS®-KP self-piercing nuts are designed to meet high strength thread requirements and higher torque demands of
the automotive industry (for example), with thread sizes ranging from M5 to M10 and are available in strength
classes 8 and 10 material. They can be specified for panels ranging from 0.6mm to 2.0mm. The Pias® installation
tooling system is required to install Pias® nuts.
Available in metric thread sizes in strength class 8 and 10 steel, they can be supplied as unplated or with a range of
electro plated zinc finishes including zinc/clear, zinc/nickel and zinc/thick film passivated.
Benefits of Pias® KP Nuts include:
•
Self piercing so no need to pre-punch the hole, meaning one less process is required and there is no potential
for misalignment between hole and nut
•
Reliable, flexible installation process
•
High torque values
•
No surface distortion
•
Various feeding options available
•
Can be specified with a self-locking thread
Pias® is a trademark of QP Fastening Works Co., LTD Japan.

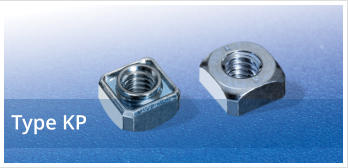

PIAS® SELF PIERCING
KP NUTS
