Material & Finish

Electro Zinc Plated Carbon Steel (ZI) parts are suitable for installation in ductile panels with a maximum recommended hardness of 80 HRB. 300 Series Stainless Steel (A2) part are suitable for installation in ductile panels with a maximum recommended hardness of 70 HRB. 400 Series Stainless Steel (400) parts are suitable for installation in ductile panels with a maximum recommended hardness of 90 HRB. Aluminium (AL) parts are suitable for installation in ductile panels with a maximum recommended hardness of 50 HRB.

Part Number Examples

Part number is made up as follows: (Type)-(Thread code)-(Material code)-(Material/Finish code) For example: NS-M3-0-ZI (Clinch Nut-M3-0.8mm min sheet thickness-electro zinc plated carbon steel) NS-M4-2-A2 (Clinch Nut-M4-1.4mm min sheet thickness-stainless steel) NS-M5-1-AL (Clinch Nut-M5-1.0mm min sheet thickness-aluminium)

Installation Guide and Performance Data Notes and advice on installing 400 series parts into hard stainless steel panels Downloadable Data Sheet Back

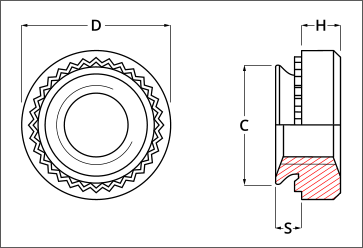

Aluminium part dimensional

Steel and Stainless Steel part dimensional

C Max.

4.22

4.73

5.38

6.38

8.72

10.47

13.97

12.65

16.90

D ±0.25

6.35

7.11

7.87

8.64

11.18

12.70

17.35

14.30

20.57

H ±0.25

1.50

1.70

1.50

2.00

4.08

5.47

7.48

6.72

8.50

Hole size +0.08 -0.0

4.25

4.75

5.40

6.40

8.75

10.50

14.00

12.70

17.00

Min. CL to edge of panel

4.8

5.6

6.9

7.1

8.6

9.7

13.5

11.0

16.0

Thread size

M2 x 0.4

M2.5 x 0.45

M3 x 0.5

M3.5 x 0.6

M4 x 0.7

M5 x 0.8

M6 x 1.0

M8 x 1.25

M10 x 1.5

M12 x 1.75

Material code

Min. sheet thickness

0.8

1.0

1.4

0.8

1.0

1.4

0.8

1.0

1.4

0.8

1.0

1.4

0.8

1.0

1.4

0.8

1.0

1.4

0.8

1.0

1.4

1.2

1.4

2.3

1.4

2.3

3.2

2.3

3.1

6.1

S Max.

0.77

0.97

1.38

0.77

0.97

1.38

0.77

0.97

1.38

0.77

0.97

1.37

0.77

0.97

1.37

0.77

0.97

1.38

0.77

0.97

1.38

1.15

1.38

2.21

1.38

2.21

3.05

2.21

3.05

5.97

Thread code

M2.5

ALTM3

M3.5

M10

ALTM10

M12

C Max

4.22

4.73

5.38

4.73

5.97

7.47

8.72

D ±0.25

6.30

7.10

6.30

7.90

9.50

11.05

H ±0.25

1.50

2.00

3.00

3.80

4.08

Hole size +0.08 -0.0

4.25

4.75

5.40

4.75

6.00

7.50

8.75

Min CL to edge of panel

4.80

5.60

6.90

5.60

7.10

7.90

8.60

Thread size

M2 x 0.4

M2.5 x 0.45

M3.5 x 0.6

M3 x 0.5

M4 x 0.7

M5 x 0.8

M6 x 1.0

Material code

Min. sheet thickness

1.0

1.4

1.0

1.4

1.0

1.4

1.0

1.4

1.0

1.4

1.0

1.4

2.3

S Max.

0.98

1.38

0.98

1.38

0.98

1.38

0.98

1.38

0.98

1.38

0.98

1.38

2.21

Thread code

M2.5

M3.5

Info

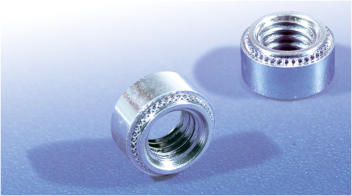

Self-Clinching Nuts provide strong reusable female threads in panels that are too thin to be conventionally tapped. Utilising a special proven clinch feature, this fastener has excellent torque-out and push-out characteristics whilst providing a flush finish on the underside of the panel. Like all self clinching fasteners they are installed using a parallel squeezing force so require access to both sides of the panel. Clinch Nuts are available in various thread sizes, manufactured from electro zinc plated steel, 300 and 400 series stainless steel, and aluminium and are suitable for installation in ductile steel and aluminium panels with a recommended maximum hardness of 80 HRB for steel parts, 70 HRB for 300 series stainless steel parts, 90 HRB for 400 series stainless steel parts and 50 HRB for aluminium parts.

Type NS

SELF-CLINCHING NUTS
