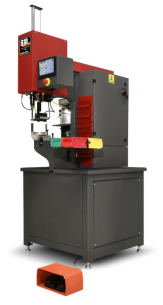

  Northern Precision (, the independent market-leading supplier of fasteners as well as special-purpose turned and cold formed parts, has reinforced its capabilities as a single-source fastening specialist by also offering advice to customers on self-clinching fastener presses.   By adding applications expertise concerning both the Haeger 618-Plus insertion machine and the LCM Prima inserter to its one-stop fastener supply repertoire, Northern Precision now offers users in companies of all sizes a complete ‘supply and fit’ solution based around the recommendation of these cost-effective machines as well as the supply of 5,000 in-stock standard line items, and special- purpose turned and cold formed parts.   Rated at up to eight tons, the Haeger 618-Plus has a 457 mm throat depth and an adjustable stroke length of 0 to 200 mm. The machine can insert at 1,200/hour (at 25 mm stroke) and has an adjustable 10 to 215 mm vertical upstroke and features a variable dwell timer for use with hard materials.   With a six ton rating, the complementary LCM Prima machine – which will be on permanent display and available for demonstration at Northern Precision’s Doncaster site - can be fitted with accessories that allow fasteners to be easily inserted into either box- or C-type work pieces, and will accommodate materials of 3 mm thick.   For information on our range of installation presses, visit our tooling site, or contact our sales office on +44 (0)1302 836010 for pricing.   Accredited to BS EN ISO 9001:2000, Northern Precision’s market lead in fastener supply is based as much around its inherent applications engineering expertise as it is on the supply of self- clinching fasteners, rivet bushes, sheet nuts, high-strength and broaching fasteners, weld nuts and studs, cage nuts and blind rivets, as well as special turned and cold-formed components to customer requirements. Issued March 2006 on behalf of: Northern Precision Ltd, Unit 3 Durham Lane, Armthorpe, Doncaster DN3 3FE Tel: 01302 836010 Fax: 01302 836012 Web site: Contact: Mr. Steve Smith, Director of Sales & Marketing Editorial enquiries: Read other news from 2006
Haeger 618 Fastener Insertion Press Primaserter Fastener Insertion Press NP
