PRESS PUNCH
PRESS PUNCH
INSERT FULLY INSTALLED
Hole Depth = L + min. 2 thread pitches
inc.
Hole size
Min. wall thickness
PRESS PUNCH
Material & Finish
Brass (B) Stainless Steel (A2)
Part Number Examples
Part number is made up as follows: (Type)-(Thread)-(Material code) For example: PLI-M4-B (Press-In Lock Insert for thermoplastics-M4-brass) PLI-M5-A2 (Press-In Lock Insert for thermoplastics-M5-stainless steel)
RoHS REACH COMPLIANT
Installation
Dimensional
Thread Size
M2 x 0.4
M2.5 x 0.45
M3 x 0.5
M3.5 x 0.6
M4 x 0.7
M5 x 0.8
M6 x 1.0
M8 x 1.25
Hole Size +0.10
3.2
4.0
4.0
4.8
5.6
6.4
8.0
9.6
Min. wall thickness
1.6
2.0
2.0
2.4
2.8
3.2
4.0
4.8

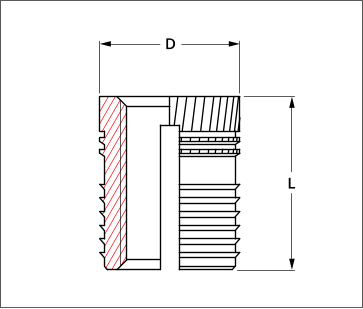

D
3.7
4.5
4.5
5.3
6.2
6.9
8.5
10.1
L
4.0
5.8
5.8
7.2
8.2
9.5
12.7
12.7
Info
Post moulded inserts can offer significant benefits over mould-in inserts such as a reduction of in place cost, no secondary operation to clean flash residue from threads, fewer rejects due to dislodged inserts and ease of installation. Press-In Lock Inserts for thermoplastics are available in a range of thread sizes, are manufactured from brass and stainless steel and are suitable for installation in soft, medium and hard thermoplastics by simply pressing in to a pre-prepared hole. Featuring sharp fins that lock into the hole wall during screw installation to provide excellent pull- out performance, this insert is designed for ease of installation without the associated high screw installation torque typical of expansion inserts.
Post Moulded Locking Press-In Inserts for Thermoplastics
PRESS-IN LOCK INSERT FOR THERMOPLASTICS
